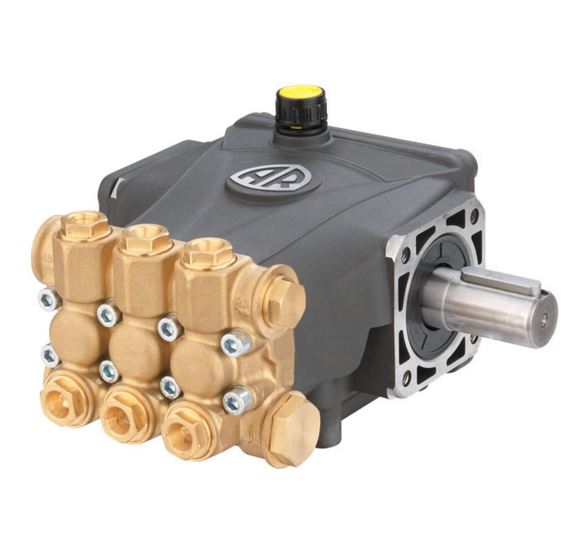

RC13.17 Annovi Reverberi Solid Shaft Pump
1450 RPM ideal to be driven by electrical motors. 24mm Solid Shaft.
13 Litres per minute @ 170 Bar / 2500 PSI
5.5 HP required to run at full pressure
- 3-piston alternating volumetric pumps for use on cleaning units and industrial systems.
- Can be coupled to various types of motors, directly or with flexible joint.
- Pump body and cover in die-cast aluminium alloy.
- Side cover may be blind or incorporate oil sight glass.
- Rear cover with oil drain outlet.
- Pistons driven by crank-connecting rod mechanism.
- Pump shaft in pressed high-strength steel.
- Oversized friction bearings.
Order Code: RC13.17
Popular Spares:
Kit 2186 (Valve kit)
Kit 42469 (Water Seals)
Kit 42468 (Oil Seals)
Kit 42467 (Pistons x 3)
